Products Liner hanger series Hydraulic liner hanger

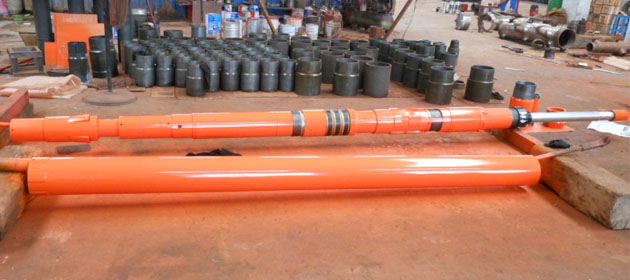

The SSX-A Mchanical Liner Hanger,with double cones,double-row slips and double cylinders,is set hydraulically by applying pressure through the run-in string.A setting ball is circulated or dropped to the ball seat built into the landing collar.Applied pressure pushes slips up the cone to the set position.
Features:
1、The SSX-A is set hydraulically,applicable to different wells,especially to deep wells.
2、With two different setting mechanisms,the SSX-A can set easily.
3、Working with SQ setting-ball carrier,the DYX-C is suitable for applications in horizontal or highly-deviated wells.
4、The piston sealing element is made of nitrile/fluorine rubber for higher pressure and temperature ratings.
5、Main parts are fabricated with high-strength alloy steel providing high burst/collapse resistance.
Property Parameters
|
Specification,mm |
Φ244.5 X Φ177.8mm/139.7mm |
Φ339.7mm X Φ244.5mm |
|
Rated Load,t |
160 |
240 |
|
Sealing Capacity,MPa |
25 |
25 |
|
Shearing Pressure of Pins in Cylinder,MPa |
7~8 |
7~8 |
|
Casing Wall Thickness,mm |
10.03 |
9.65 |
|
11.05 |
10.92 |
|
|
11.99 |
12.19 |
|
|
Casing Weight,Kg/m |
59.52 |
54.5 |
|
64.73 |
68 |
|
|
69.94 |
85 |
|
|
Body Max O.D.,mm |
215 |
308 |
|
Body Min I.D.,mm |
155 |
220.5 |
